THE BENCHMARK FOR VISIBILITY

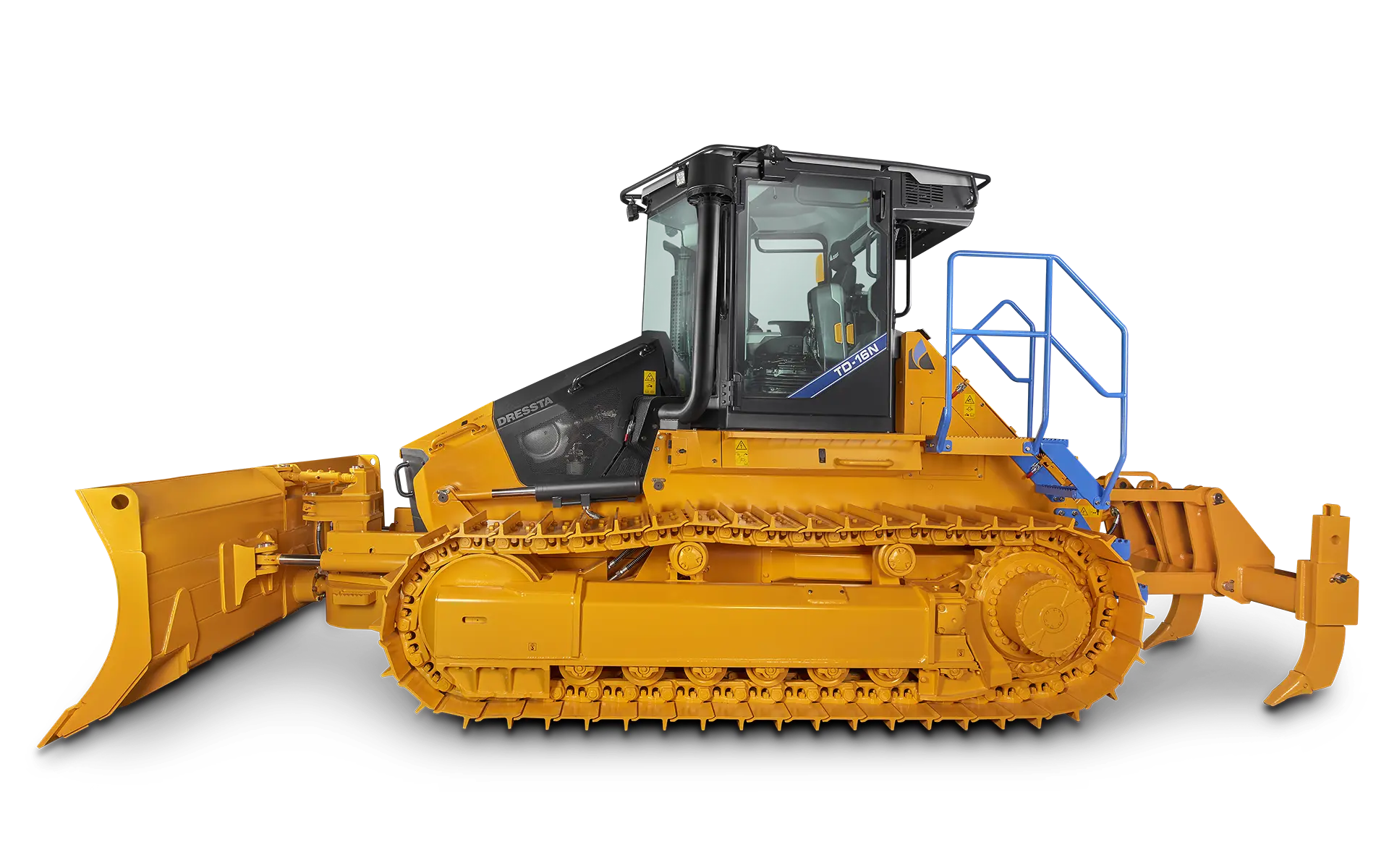

TD-16N
ENGINE
Cummins B6.7 EPA Tier 4 final/EU Stage V
POWER
143 kW / 192 hp @ 2200 rpm
OPERATING WEIGHT
TD-16N LT: 18,560kg
TD-16N LGP: 19,010kg
TD-16N LGP: 19,010kg
BLADE CAPACITY
TD-16N LT: 4.0 m³ 5.2 yd³
TD-16N LGP: 4.4 m³ 5.8 yd³
TD-16N LGP: 4.4 m³ 5.8 yd³
THE ALL NEW TD-16N
Welcome to completely new operator experience – welcome to the New TD-16N.
With the TD-16N we set out to create the very best dozer for operators. A dozer that would rewrite the rule book and be the benchmark for visibility, safety and operational performance. Immediately honoured with a world-renowned Red Dot Design Award, we have delivered a revolutionary machine. Nothing looks like it, performs like it, or offers greater visibility and safety for the operator.
WE’VE CREATED A REVOLUTION IN THE OPERATOR EXPERIENCE
For Dressta, the operator experience is everything. When we design a machine, we start with the operator and design everything around them. When the operator can see more, they can do more in safety. That’s why Dressta machines are the benchmark for visibility of the blade, ripper, tracks, and jobsite.
We use our engineering capability to deliver the maximum pushing power with machines that just keep on working. In our tough applications endurance is the key and we have machines that are still working and earning with 30 years’ tough service in the field. That’s Dressta design and endurance in action.
We use our engineering capability to deliver the maximum pushing power with machines that just keep on working. In our tough applications endurance is the key and we have machines that are still working and earning with 30 years’ tough service in the field. That’s Dressta design and endurance in action.
The TD-16N In Operation
Meet the machine that rewrites the rulebook. Watch our final film of the TD-16N in operation and what the experts had to say about it.
ULTRA QUIET CAB
With low noise and low vibrations, we’ve created the perfect operating environment
With low noise and low vibrations, we’ve created the perfect operating environment
WORK YOUR WAY
Chose from three selectable drive and attachment modes
Chose from three selectable drive and attachment modes
NEW 10” LCD DISPLAY
Gives the operator the real-time machine data
Gives the operator the real-time machine data
UNDERCARRIAGE FLEXIBILITY
Interchangeable Track shoes from 560 mm (22 in) LT UC for Harder ground applications to 762 mm (30 in) LGP UC for much better stability on soft ground works
Interchangeable Track shoes from 560 mm (22 in) LT UC for Harder ground applications to 762 mm (30 in) LGP UC for much better stability on soft ground works
ENGINEERED TO PERFORM
New VPAT (Variable Pitch Angle Tilt) blade is designed to move maximum material with minimum effort
New VPAT (Variable Pitch Angle Tilt) blade is designed to move maximum material with minimum effort
SERIOUS PUSHING POWER
With 192 hp and 881Nm torque, fuel efficient Cummins engine delivers an 350kN drawbar pull
With 192 hp and 881Nm torque, fuel efficient Cummins engine delivers an 350kN drawbar pull
DAILY CHECKS ARE PERFECT
“DAILY CHECKS ARE PERFECT, YOU DON’T HAVE TO GO ON THE TRACKS, IT’S ALL DONE FROM THE GROUND”
Neil John Mckeown Road and Highway Operator, Ireland
“DAILY CHECKS ARE PERFECT, YOU DON’T HAVE TO GO ON THE TRACKS, IT’S ALL DONE FROM THE GROUND”
Neil John Mckeown Road and Highway Operator, Ireland
VERY EASY ACCESS
“DAILY CHECKS ARE PERFECT, YOU DON’T HAVE TO GO ON THE TRACKS, IT’S ALL DONE FROM THE GROUND”
Ignace Hoareau Construction Equipment Operator, France
“DAILY CHECKS ARE PERFECT, YOU DON’T HAVE TO GO ON THE TRACKS, IT’S ALL DONE FROM THE GROUND”
Ignace Hoareau Construction Equipment Operator, France
ZERO BLIND SPOT
“THE VISIBILITY IS SECOND TO NONE... YOU ALWAYS EXPECT TO HAVE SOME SORT OF BLIND SPOT, I SEE NONE OF THAT, IT’S JUST 100% CLEAR”
Rob Winmill Equipment Owner & Dealer, USA
“THE VISIBILITY IS SECOND TO NONE... YOU ALWAYS EXPECT TO HAVE SOME SORT OF BLIND SPOT, I SEE NONE OF THAT, IT’S JUST 100% CLEAR”
Rob Winmill Equipment Owner & Dealer, USA
A REVOLUTIONARY DESIGN
With low noise and low vibrations, we’ve created the perfect operating environment
Chose from three selectable drive and attachment modes
Gives the operator the real-time machine data
Interchangeable Track shoes from 560 mm (22 in) LT UC for Harder ground applications to 762 mm (30 in) LGP UC for much better stability on soft ground works
New VPAT (Variable Pitch Angle Tilt) blade is designed to move maximum material with minimum effort
With 170bhp and 881Nm torque, fuel efficient Cummins engine delivers an 350kN drawbar pull
“DAILY CHECKS ARE PERFECT, YOU DON’T HAVE TO GO ON THE TRACKS, IT’S ALL DONE FROM THE GROUND”
Neil John Mckeown Road and Highway Operator, Ireland
Neil John Mckeown Road and Highway Operator, Ireland
“DAILY CHECKS ARE PERFECT, YOU DON’T HAVE TO GO ON THE TRACKS, IT’S ALL DONE FROM THE GROUND”
Ignace Hoareau Construction Equipment Operator, France
Ignace Hoareau Construction Equipment Operator, France
“THE VISIBILITY IS SECOND TO NONE... YOU ALWAYS EXPECT TO HAVE SOME SORT OF BLIND SPOT, I SEE NONE OF THAT, IT’S JUST 100% CLEAR”
Rob Winmill Equipment Owner & Dealer, USA
Rob Winmill Equipment Owner & Dealer, USA
THE BENCHMARK FOR
ACCESS
Why should operators risk accidents every time they get in and out of the cab?
Climbing onto the tracks is a compromise and with the TD-16N we don’t compromise.
Our rear access system significantly reduces the risk for the operators when getting in and out of the cab. Its integrated design and tough construction add safety without compromising the robustness and performance of the machine.
SAFER BY DESIGN
INNOVATIVE REAR ACCESS
BUILT TO ENDURE THE TOUGHEST CONDITIONS
THE BENCHMARK FOR
VISIBILITY
Visibility is absolutely key to operator safety and productivity - the more you see the more you can do in safety.
With the TD-16N we’ve created the benchmark for visibility. Our revolutionary 4-post mid-mounted cab has allowed us to create a panoramic view of the jobsite with an unparalleled view of the blade, the ripper and the tracks. Step into the cab, take your seat and you will see the difference - nothing comes close to the TD-16N.
THE BENCHMARK FOR VISIBILITY (SEE IT FOR YOURSELF)
RED DOT DESIGN AWARD WINNING
UNRIVALLED VIEWS OF THE BLADE, RIPPER AND JOBSITE
THE BENCHMARK FOR
PRODUCTIVITY
With three selectable drive modes (eco/normal/power) plus three tunable attachment modes, operators can match the machine to their own requirements. These unique settings can be stored in the machine’s memory, giving different operators the freedom to work their own way.
ULTRA LOW-NOISE CAB
AIR SUSPENSION SEAT AND ERGONOMIC CONTROLS
LARGE HIGH RESOLUTION TOUGH SCREEN DISPLAY
THREE SELECTABLE DRIVE AND ATTACHMENT MODES
THE BENCHMARK FOR
POWER AND PERFORMANCE
The TD-16N is powered by a highly efficient hydrostatic drivetrain. At its heart beats a fuel efficient Cummins Stage V engine delivering 192 hp and 881Nm torque, resulting in a 305kN drawbar pull. This perfectly engineered power to weight ratio delivers awesome pushing power with surprisingly low noise and vibrations. The TD-16N’s hydrostatic drivetrain delivers a perfect dozing experience for the operator, with spot turning, slope control, pushing, ripping and grading, all performed with maximum control and minimum effort.
HYDROSTATIC DRIVETRAIN
PERFECT POWER TO WEIGHT RATIO
STAGE V CUMMINS ENGINE
THE BENCHMARK FOR
CONTROL AND CONNECTIVITY
When it comes to sensitive control, the TD-16N puts the power in your hands. Unrivalled blade and ripper performance is delivered by Rexroth’s world-class electrohydraulic valve control through to the highly engineered 6-way blade and 3-shank ripper. Compatible with world leading machine control connectivity solutions from Leica, Topcon and Trimble, the TD-16N delivers fewer passes, higher fuel economy, lower fatigue and greater job satisfaction for the operator. Job done!
WORLD-CLASS REXROTH HYDRAULICS
6-WAY BLADE ELECTRO HYDRAULIC CONTROL
LEICA, TRIMBLE AND TOPCON READY
THE BENCHMARK FOR
MAINTENANCE
Operators tell us, and accident statistics prove the dangers posed by climbing onto the tracks.
We created a better, safer, access and maintenance experience for the operator. The TD-16N is the first
compact dozer that allows you to refuel and conduct daily checks with your feet, firmly on the ground.
Engine and hydraulic oil checks, coolant checks and grease point checks can all be done quickly easily and safely. No danger, no compromise, just a better experience for the operator
SAFER BY DESIGN
NO NEED TO CLIMB ON THE TRACKS
GROUND ACCESS FOR ALL MAJOR SERVICE AND FUELLING POINTS
THE BENCHMARK FOR
ENDURANCE
Endurance is the heart of Dressta. Our machines are designed and built to last. The TD-16N takes endurance to a new level. Every weld and every component is rigorously tested to the limit and beyond. Its new, tough frame and versatile undercarriage has been designed and engineered to absorb shattering impacts with ease. The hydraulics are armed with even greater protection from impact and debris. The blade and 3-shank ripper has been strengthened to withstand the incredible forces and impacts of the toughest terrain. The engine is protected from dust and debris by a hydraulically driven, variable speed fan. A dozer is only as strong as its weakest point – and at Dressta – we don’t do weakness.
NEW, VERSATILE UNDERCARRIAGE
FULLY PROTECTED HYDRAULICS
STRONGER 3 SHANK RIPPER AND BLADE
TOUGH NEW FRAME BUILT TO ABSORB HIGH IMPACT SHOCK
ENGINE PROTECTED BY HYDRAULICALLY DRIVEN, VARIABLE SPEED FAN
AVAILABLE MODELS
TD-16N LGP
TD-16N LT
KEY SPECIFICATIONS
At Dressta we take pride in innovating to help our customers to achieve more in the jobs they do. Our dedicated team of application engineers can customize designs, modify standard equipment and adapt attachments for peak performance in specific application tasks, improving productivity and bottom line results.
Driveline
Engine Manufacturer / Model / Tier
Cummins B 6.7
EPA Tier 4 final / EU Stage V
EPA Tier 4 final / EU Stage V
Displacement
6.7 l (408 in3)
Rated Speed
2200 RPM
Engine Output - Net
143 kW (192 hp)
Engine Torque
881 Nm (650 lb-ft) @ 1300 rpm
Track Rollers, Each Side
7
Track Shoe Width
762 mm (30 in)
Ground Contact Area
47 850 cm2 (7420 in2)
Shoes, Each Side
44
Dimensions
Overall height - Cab
3390 mm (11 ft 1 in)
Ground Clearance
468 mm (18.42 in)
Width - Over Tracks
2860 mm (9 ft 5 in)
Track Length - On Ground
3140 mm (10 ft 4 in)
Blade Width
3980 mm (157 in)
2893 mm (113,9 in)
2893 mm (113,9 in)
Overall Length
4520 mm (14 ft 10 in)
Performance
Travel speeds
10.5 km/h (6.5 mph)
Ground Bearing Pressure
36,6 kPa (5,1 psi)
Drawbar Pull Maximum
305 kN (68 567 lb)
Implement Pump Flow
113 l/min (29.8 gpm)
Operating Weight
Operating Weight
19,010 kg
Dressta TD-16N Brochure
downloadKEY SPECIFICATIONS
At Dressta we take pride in innovating to help our customers to achieve more in the jobs they do. Our dedicated team of application engineers can customize designs, modify standard equipment and adapt attachments for peak performance in specific application tasks, improving productivity and bottom line results.
Driveline
Engine Manufacturer / Model / Tier
Cummins B 6.7
EPA Tier 4 final / EU Stage V
EPA Tier 4 final / EU Stage V
Displacement
6.7 l (408 in3)
Rated Speed
2200 RPM
Engine Output - Net
143 kW / 192 hp @ 2200 rpm
Engine Torque
881 Nm (650 lb-ft) @ 1300 rpm
Track Rollers, Each Side
7
Track Shoe Width
560 mm (22 in)
Ground Contact Area
35 170 cm2 (5451 in2)
Shoes, Each Side
44
Dimensions
Overall height - Cab
3390 mm (11 ft 1 in)
Ground Clearance
468 mm (18.42 in)
Width - Over Tracks
2660 mm (8 ft 9 in)
Track Length - On Ground
3140 mm (10 ft 4 in)
Blade Width
3676mm (145 in)
2893 mm (113,9 in)
2893 mm (113,9 in)
Overall Length
4520 mm (14 ft 10 in)
Performance
Travel speeds
10.5 km/h (6.5 mph)
Ground Bearing Pressure
49 kPa (7,1 psi)
Drawbar Pull Maximum
305 kN (68 567 lb)
Implement Pump Flow
113 l/min (29.8 gpm)
Operating Weight
Operating Weight
18,560 kg
Dressta TD-16N LT Brochure
